HO HSING HVP-90 series
Contact us for price and availability.

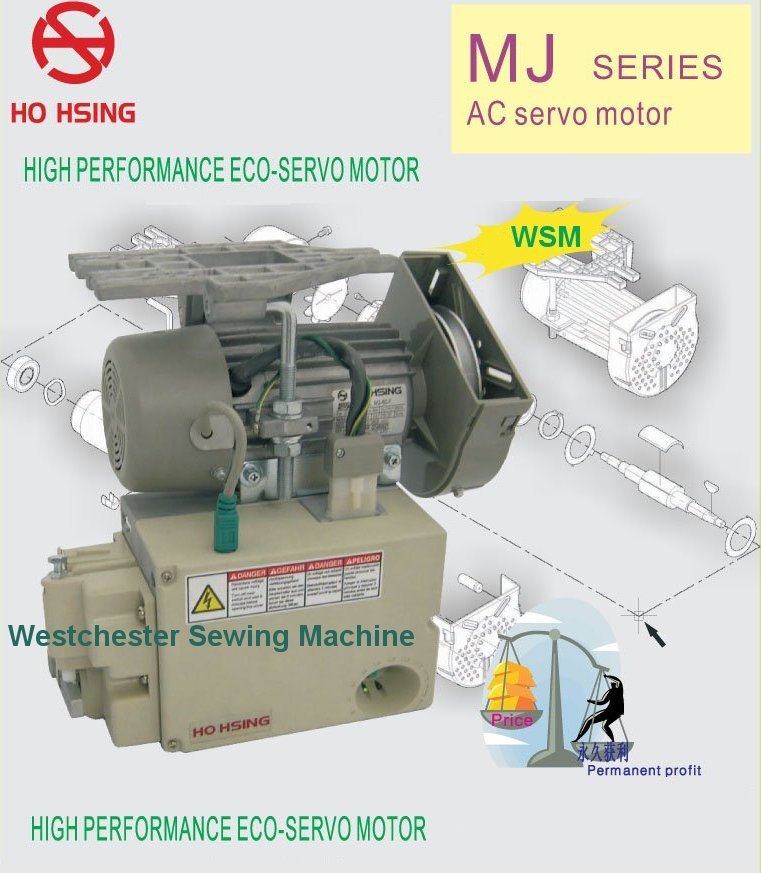

AC Servo Motor and Control Box
Functions such as automatic thread trimming,
presser foot lifting,
preset stitching, bar tacking and tacking are all provided.
A simple sequence and PC communication function are also provided.
2. Highly accurate positioning +-3.0 degrees.
3. Powerful operation box function: (parameters programmable, linkable to PC, build in EEPROM can manage and store the parameters setting)
4. Solenoid over current protector
5. Low noise, low vibration and low power consumption..
6. Linkable to PC
7. Software / Hardware 2-way protection system.
8. Multi- Positioning mode.
9. Switching power supply system (160V~280V AC)
10. Powerful parameter system, easy adjustment and upgradeable.
| Motor Type |
550W-3000 rpm |
||
| Power Voltage Range |
Single Phase :
100~120V / 200~240V |
||
| Pulley Size Available |
65~130mm |
||
| One Shot Positioning |
 |
|
|
| Needle UP / DOWN |
|
|
|
| Soft Start |
|
|
|
| Presser Foot Lifting |
|
|
|
| Trimmer / Wiper |
|
|
|
| Automatic Back-Tacking |
|
|
|
| Reverse at Stop |
|
|
|
| Power Transistor Protection |
|
|
|
| Power Module Protection |
|
|
|
| Input Signal Port |
2
|
13 |
|
| Solenoid Signal Output Port | 4 | 8 | |
| Edge Sensor Input Port | 0 | 2 | |
| Gross Weight | 11.5 kgs | ||
| Packing Dimension | 424L x 409W x 355H mm | ||
