MODEL 744R - SINGLE NEEDLE |
MODEL 745R - DOUBLE NEEDLE

    EXTRA HEAVY DUTY, DROP FEED, NEEDLE FEED  (COMPOUND   FEED)

ALTERNATING PRESSER FEET LOCKSTITCH MACHINE

Available in arm sizes  10", 20", 30" 1 or 2 Needle Varieties




with EXTRA LARGE BOBBIN(S) AND VERTICAL AXIS HOOK(S)

CENTRALIZED ARM LUBRICATION

RESERVOIR-OIL FILLED HOOK(S) WITH MICROMETER CONTROL VALVE

PRESSER FOOT LOCKING LEVER

PUSH BUTTON STITCH REGULATOR

REVERSE FEED

SAFETY CLUTCH

BUILT-IN BOBBIN WINDER

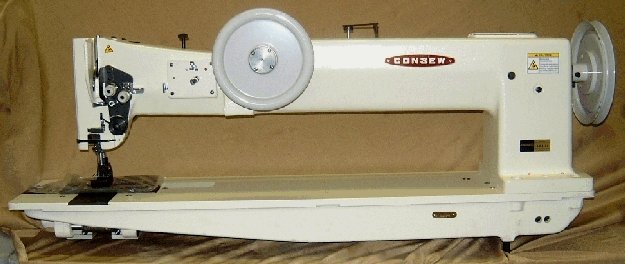

FRONT HANDWHEEL(ON 30" ARM) PULLER OPTIONAL



Available in models:

SINGLE NEEDLE BED SIZE WORK SPACE
744R10 20 7/16" x 9 1/16"(519mm x 230mm) 10" (254mm)
744R20 33 5/16" x 9 1/16"(846mm x 230mm) 20" (508mm)
744R30 43 5/16" x 9 1/16"(1100mm x 230mm) 30" (762mm)
DOUBLE NEEDLE BED SIZE WORK SPACE
745R10 20 7/16" x 9 1/16"(519mm x 230mm) 10" (254mm)
745R20 33 5/16" x 9 1/16"(846mm x 230mm) 20" (508mm)
745R30 43 5/16" x 9 1/16"(1100mm x 230mm) 30" (762mm)

Specifications

744R - 745R
Speed, Max (S.P.M.) : 1500*
Clearance Under Foot : 25/32" (20mm)
Needle Bar Stroke : 1 27/32" (46.8mm)
Stitch Length, Max. : 25/64" (10mm)
Needle : 7x3 (DYx3)
Bobbin : 70141
Hook : 70140
Stitch Type : 301
Standard Needle Spacing : 1/4" (6.35mm)
Needle Spacing Available : 3/16" - 2 3/8" (4.76mm - 60.33mm)

Applications

Features
